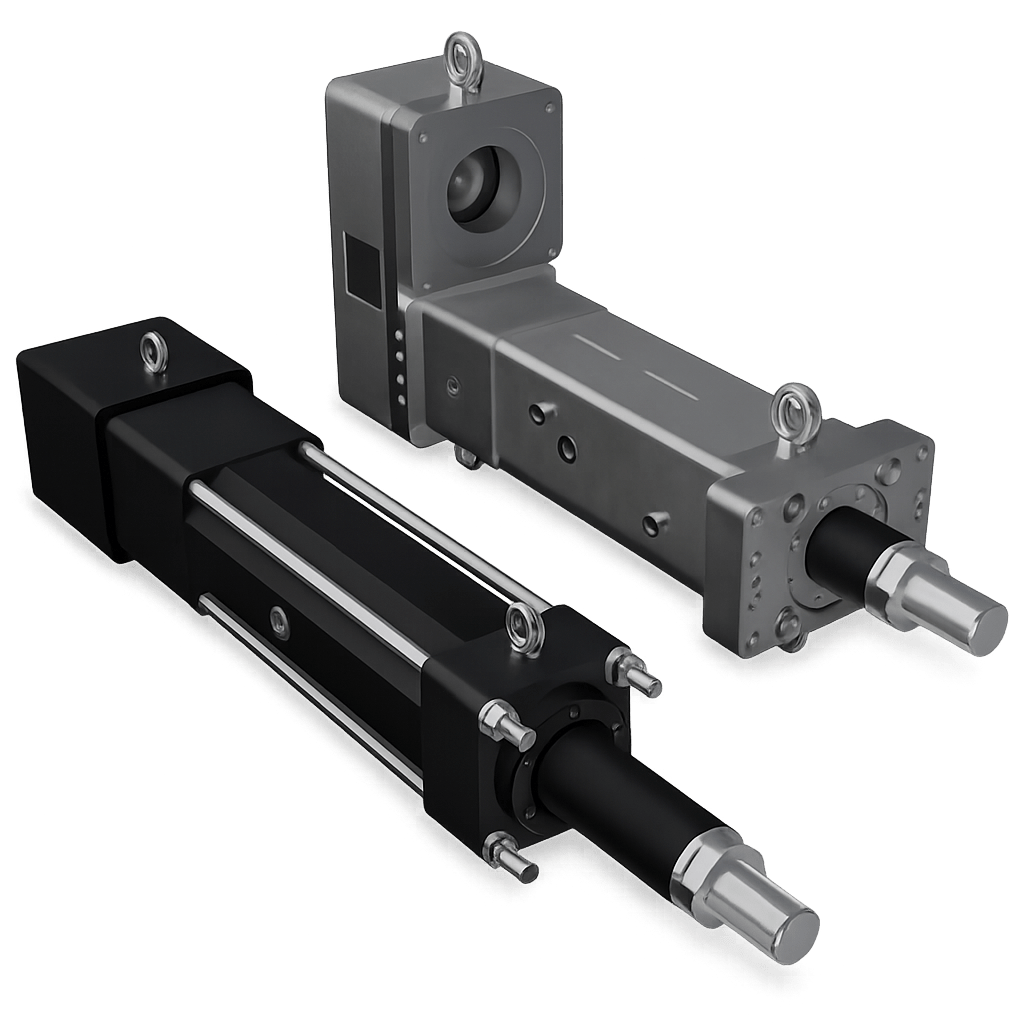

RSX Extreme Force Electric Actuators

RSX Extreme Force Actuators replace hydraulic cylinders to eliminate messy leaks and increase system performance

The RSX family of extreme force electric linear actuators offer increased precision and higher efficiency than hydraulic cylinders. Tolomatic precision ground planetary roller screws are utilised to achieve long life and precision. The RSX platform is designed and tested for long life and reliable performance in demanding conditions including cold weather operation. The RSX family includes seven models capable of achieving 89 kN to 294 kN max force.

RSX extreme force electric linear actuators offer these features:

  • Planetary roller and ball screw driven for long consistent life
  • Type III hard coat anodised aluminium housing to withstand demanding environments
  • Standard thrust rod anti-rotation feature
  • IP67 option to protect against dust and water ingress
  • Compatible with servo motors and gearboxes up to 290mm frame sizes
  • Food grade, white epoxy coating and stainless steel thrust rod option
  • Oil filled options available for high duty cycle/ high speed applications

NOTE: With recent name change, RSX096 has been renamed RSX15 and RSX128 has been renamed RSX25

RSX Maximum Stroke
Size RSX10  RSX15 RSX20  RSX25  RSX33*  RSX23P* RSX33P*
Imperial 59 in 59 in 50 in 48 in 48 in 28 in 39 in
Metric 1,500 mm 1,500 mm 1,270 mm 1,220 mm 1,220 mm 710 mm 990 mm

*Contact INMOCO for Availability

RSX Maximum Force
Size RSX10  RSX15 RSX20  RSX25  RSX33*  RSX23P* RSX33P*
Imperial 20,000 lbf 30,000 lbf 40,000 lbf 50,000 lbf 66,000 lbf 46,000 lbf** 66,000 lbf**
Metric 89 kN 133 kN 178 kN 222 kN 294 kN 205 kN** 294 kN**

**Max. force only in extend

RSX Maximum Speed
Size RSX10  RSX15 RSX20  RSX25  RSX33*  RSX23P* RSX33P*
Imperial 30 in/sec 30 in/sec 30 in/sec 30 in/sec 20 in/sec 30 in/sec 20 in/sec
Metric 760 mm/sec 760 mm/sec 760 mm/sec 760 mm/sec 510 mm/sec 760 mm/sec 510 mm/sec
